The ECX Pressure Level Transmitter is an industrial measurement instrument designed for precise monitoring of liquid levels in tanks, reservoirs, pipelines, and process vessels. Using advanced pressure sensing technology, this device converts hydrostatic pressure generated by liquid height into a stable electrical output signal. The transmitter provides dependable measurement in applications where accurate level monitoring is critical for operational efficiency and safety.
This transmitter is widely used in water treatment facilities, wastewater management systems, chemical processing plants, and industrial manufacturing operations. With its durable stainless steel sensing diaphragm and integrated temperature compensation circuitry, the ECX series maintains measurement accuracy even in demanding environments involving weak acids, alkaline liquids, or impurity-containing fluids.
Key Features
- High-precision pressure sensing with stable 4-20 mA output signal
- Built-in temperature compensation for long-term operational stability
- Stainless steel diaphragm suitable for corrosive or viscous liquids
- Compatible with PLC systems, digital panel meters, and controllers
- Multiple installation options including cable, rod, and flange types
- Reliable performance in water, wastewater, and industrial liquid monitoring
Design & Functionality
The ECX transmitter operates using a piezoresistive Wheatstone bridge pressure sensor. When hydrostatic pressure from a liquid column acts on the diaphragm, the pressure is transmitted through silicone oil to the semiconductor bridge. This process generates a differential voltage signal that is amplified and converted into a standardized 4–20 mA output signal.
This electrical signal can then be transmitted to monitoring devices such as PLC systems, digital meters, and process controllers. By converting pressure into level measurements, the ECX transmitter enables accurate monitoring of liquid height within tanks or vessels.
Total Crossed Beams
The sensing mechanism incorporates a precision semiconductor bridge structure that converts diaphragm pressure deformation into electrical signals. This configuration ensures stable measurement performance even when operating in fluctuating pressure environments. The advanced sensor design improves signal reliability and reduces measurement drift over extended operational periods.
Beam Pitch Options

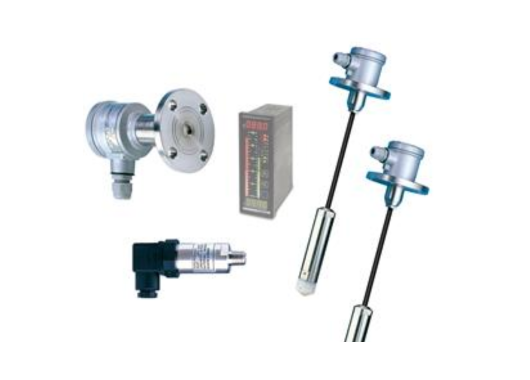

The ECX series supports multiple structural configurations for different installation conditions. These include cable-suspended probes for deep reservoir measurement, rod-type transmitters for agitated tanks, and flange-mounted transmitters for high-temperature industrial processes. This flexibility allows engineers to select the most suitable configuration for each process system.
Intrinsic Synchronism
Internal temperature compensation technology stabilizes sensor output by correcting environmental temperature variations. This feature maintains measurement accuracy and reduces signal deviation during long-term industrial operation, ensuring consistent level monitoring across different process conditions.
Operational Advantages
Industrial operations require dependable measurement devices capable of operating continuously in harsh conditions. The ECX Pressure Level Transmitter provides stable performance in applications involving wastewater treatment plants, reservoirs, chemical processing equipment, and hydraulic systems.
Its robust stainless steel construction allows the transmitter to measure liquids containing impurities, scale particles, or mild corrosive properties. Combined with simple installation and reliable signal transmission, the ECX transmitter improves process monitoring, enhances control system integration, and supports efficient industrial production management.
