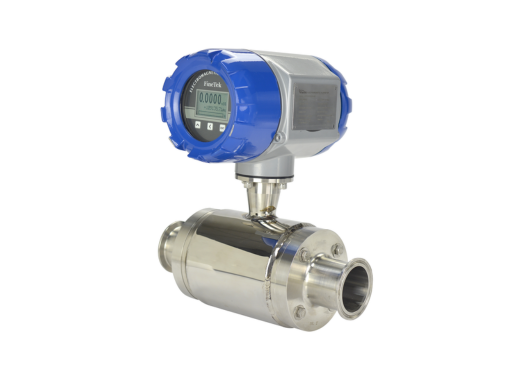

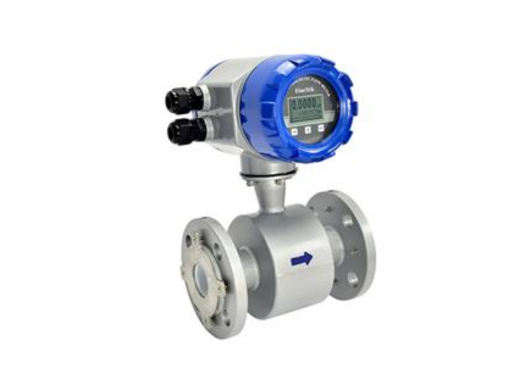

The EPD Electromagnetic Flow Meter is a precision liquid flow measurement solution designed for industrial process monitoring and pipeline control. Built on electromagnetic induction principles, the meter measures the flow rate of conductive liquids passing through enclosed pipes with exceptional stability and accuracy. Because the measurement process is unaffected by changes in density, viscosity, temperature, or pressure, the device is widely used across water treatment plants, chemical processing facilities, food production lines, and pharmaceutical manufacturing systems.
The meter offers reliable operation in demanding industrial environments where precise flow monitoring is critical for production efficiency and quality control. Its rugged design, intelligent diagnostics, and advanced signal processing make it suitable for continuous operation in modern automated facilities.
Key Features
The EPD series flow meter provides advanced measurement capabilities for industrial liquid flow applications. Its non-intrusive measuring principle eliminates mechanical wear and reduces maintenance requirements.
Key performance features include:
- High measurement accuracy for industrial process monitoring
- Wide turndown ratio allowing accurate low-flow measurement
- No moving parts, eliminating mechanical wear and pressure loss
- Stable measurement unaffected by liquid viscosity or density changes
- Multiple output options including analog, pulse, and communication signals
- Intelligent self-diagnostic functions for system monitoring
These features make the meter suitable for both new installations and retrofit projects in process industries.
Design & Functionality
The flow meter consists of two main components: the sensor and the transmitter. The sensor contains electromagnetic coils that generate a magnetic field across the measuring tube. When conductive liquid flows through this magnetic field, an induced voltage is created. This voltage is directly proportional to the liquid velocity and is detected by electrodes installed inside the measuring tube.
The transmitter processes this signal and converts it into standardized output signals used for monitoring and control systems. Because the design contains no internal obstructions or moving components, the device minimizes pressure loss and prevents clogging within the pipeline.
Total Crossed Beams
The sensor structure ensures uniform magnetic field distribution across the measuring section. This allows accurate detection of induced voltage across the fluid stream, enabling reliable measurement even in applications where the liquid contains suspended particles or fibers.
Beam Pitch Options
The meter supports various pipe diameters and measurement ranges, allowing it to adapt to different industrial pipeline configurations. Its wide measurement velocity range allows the device to measure both low-flow and high-flow conditions without sacrificing accuracy.
Intrinsic Synchronism
The integrated transmitter maintains stable excitation and signal processing to ensure precise synchronization between magnetic field generation and signal detection. This synchronization provides consistent measurement performance even in fluctuating process conditions.
Operational Advantages
Industrial facilities benefit from several operational advantages when using electromagnetic flow measurement technology:
- Reduced maintenance costs due to absence of mechanical components
- Long-term measurement stability
- Low installation requirements with short straight pipe sections
- Compatibility with industrial control systems and automation platforms
- Reliable operation in harsh process environments
These advantages make the EPD Electromagnetic Flow Meter a dependable solution for modern industrial liquid flow measurement.
