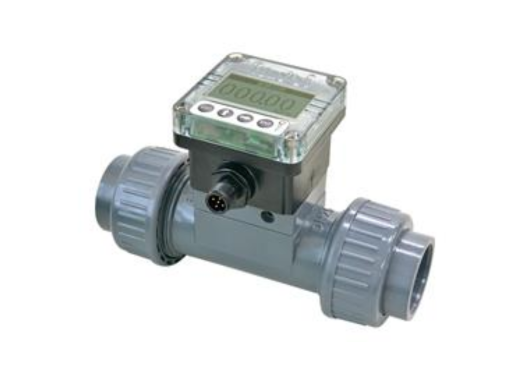

The EPR Paddle Wheel Flow Meter is a compact and reliable flow measurement device designed for monitoring liquid flow in industrial pipelines. Using a rotating paddle wheel sensing mechanism, this meter measures flow velocity and converts it into accurate flow rate data. Its lightweight design, precise calibration, and versatile output signals make it an ideal solution for manufacturing plants, water treatment facilities, chemical processing lines, and food production systems.
Engineered for industrial environments, the EPR series supports accurate flow measurement with excellent linearity and a wide velocity range. The meter provides real-time flow monitoring and accumulated flow data, helping engineers maintain process stability and improve operational efficiency.
Key Features
- High-precision paddle wheel sensing technology
- Flow measurement range from 0.3 to 10 m/s
- Analog output 4–20 mA for process control integration
- Pulse and frequency output signals
- RS485 communication with Modbus protocol
- Built-in FRAM memory for cumulative flow storage
- Optional display and non-display versions
- Compact, lightweight construction for easy installation
These features make the meter suitable for industrial automation and continuous flow monitoring applications.
Design & Functionality
The EPR flow meter operates using a rotating blade positioned inside the fluid path. As liquid flows through the pipe, it rotates the paddle wheel. The rotational speed is proportional to the fluid velocity, allowing the system to calculate flow rate accurately.
A built-in microprocessor processes the signal and converts it into analog, pulse, or digital communication outputs. This enables seamless integration with PLC systems, monitoring panels, and industrial control networks.
The compact housing and modular construction allow the display unit to be separated from the sensor for maintenance or replacement. This design simplifies servicing and reduces downtime in industrial environments.
Total Crossed Beams
The paddle wheel sensor ensures stable flow detection by maintaining consistent blade rotation even under varying flow conditions. This design improves signal stability and ensures reliable measurement across the full flow range.
Beam Pitch Options
The EPR series supports various pipe sizes and installation configurations, allowing the meter to be used across multiple pipeline systems. This flexibility enables integration into different industrial fluid control environments.
Intrinsic Synchronism
The sensor calibration process ensures accurate K-factor measurement and consistent flow detection. Advanced signal processing reduces friction, resistance, and mechanical errors, maintaining stable measurement performance over time.
Operational Advantages
Industrial facilities benefit from the EPR flow meter's combination of accuracy, durability, and system compatibility. Its ability to provide both instantaneous and accumulated flow data allows operators to optimize production processes and monitor fluid consumption effectively.
Applications include:
- Water treatment plants
- Chemical processing systems
- Food and beverage manufacturing
- Pharmaceutical production
- Semiconductor processing
- PCB wet process control
The EPR Paddle Wheel Flow Meter delivers dependable liquid flow measurement while supporting automation and process optimization across modern industrial environments.
