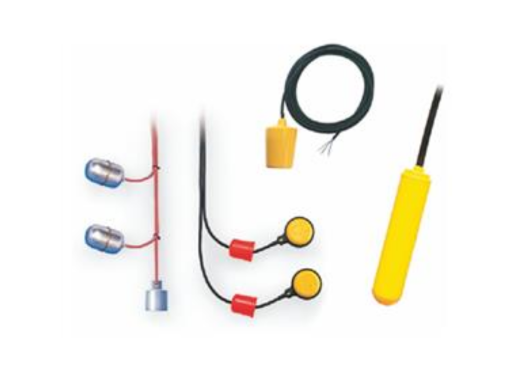

The FAB Cable Float Level Switch is a reliable and cost-effective solution for liquid level detection in industrial tanks, wastewater systems, and pump control applications. Designed for accurate ON/OFF level monitoring, this cable-suspended float switch provides dependable performance in harsh process environments. Its robust construction and simple operation make it ideal for water treatment facilities, chemical plants, petrochemical installations, and industrial liquid storage systems.
Using buoyancy-based float movement combined with internal switching mechanisms, the device activates or deactivates electrical contacts when the liquid level changes. This allows automated pump control, overflow prevention, and tank level management without complex instrumentation.
Key Features
- Reliable float-activated level detection
- Suitable for pump control and tank level monitoring
- Chemical-resistant materials including PVC, PP, and stainless steel
- Supports microswitch, reed switch, or mercury switch output
- Designed for single-point or multi-point level detection
- Durable cable construction for long service life
- Easy installation in tanks, reservoirs, and wastewater pits
Design & Functionality
The cable float switch operates through buoyancy and angle-based switching action. As the liquid level rises, the float moves upward and tilts. Inside the float housing, a metal ball or switch mechanism shifts position once the actuation angle is reached. This movement triggers the electrical contact output, generating an ON or OFF signal used for pump activation or alarm systems.
The cable-suspended design allows flexible installation and reliable operation in tanks with varying liquid depths. Multiple float configurations can also be used for multi-level detection in larger vessels.
Total Crossed Beams
The design allows accurate switching action by utilizing internal mechanical movement triggered by the float angle. This ensures stable level detection without requiring complex electronic measurement systems.
Beam Pitch Options
Different float materials and switch types allow the system to operate across various temperature ranges and process environments. Cable length can also be configured to suit different tank depths and installation requirements.
Intrinsic Synchronism
The float mechanism maintains consistent switching performance due to balanced buoyancy and mechanical actuation. This ensures reliable level detection across varying liquid densities and industrial conditions.
Operational Advantages
The FAB Cable Float Level Switch provides several operational benefits for industrial facilities:
- Simple and cost-effective liquid level control
- Reliable pump automation in wastewater systems
- Compatible with clear liquids and granular liquids
- Minimal maintenance requirements
- Durable construction for long-term industrial operation
These advantages make it a preferred solution for liquid level control in tanks, reservoirs, drainage systems, and industrial process containers.
