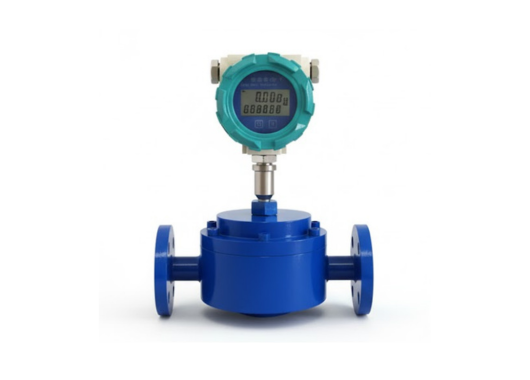

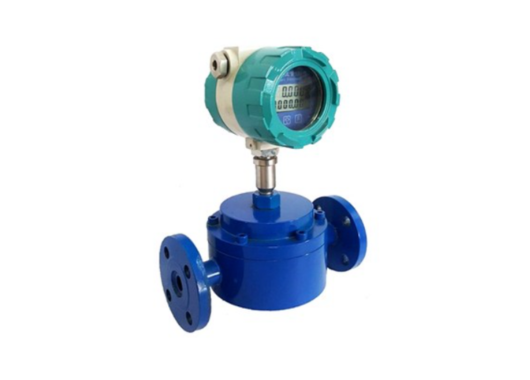

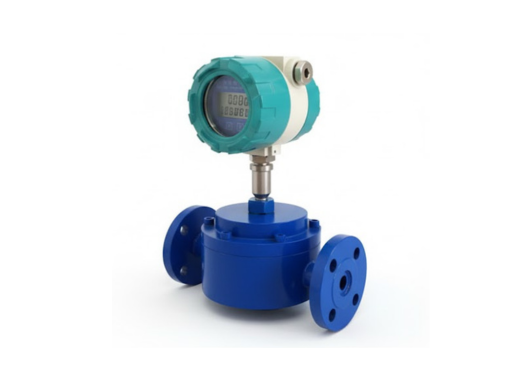

The HEG Oval Gear Flow Meter is engineered for high-precision liquid flow measurement across diverse industrial applications including oil & gas, chemical processing, water treatment, HVAC systems, food production, marine operations, and vehicle fluid systems. Designed to handle both low and high viscosity liquids, this meter ensures consistent accuracy, making it ideal for process control and industrial automation environments.
Key Features
This flow meter offers exceptional measurement accuracy with repeatable results, even under fluctuating flow conditions. Its wide range ratio allows flexibility across varying flow rates, while its robust material options support aggressive fluids and high-pressure environments. The meter is built for industries that demand reliability, including fuel systems, lubrication monitoring, and chemical dosing applications.
Design & Functionality
The oval gear mechanism ensures precise volumetric measurement by capturing fluid between rotating gears. Each rotation corresponds to a fixed volume, enabling accurate and stable output regardless of viscosity changes. The compact design allows easy integration into pipelines across industries such as wastewater treatment plants, marine fuel systems, and HVAC circulation loops.
Total Crossed Beams
The internal structure ensures continuous fluid capture and transfer, minimizing pulsation and maintaining measurement stability. This design is especially beneficial in applications requiring smooth flow monitoring, such as food processing and chemical blending systems.
Beam Pitch Options
Optimized gear geometry enhances measurement sensitivity across a wide range of flow rates. This allows the meter to perform efficiently in both low-flow precision dosing and high-flow industrial transfer operations.
Intrinsic Synchronism
The synchronized gear rotation ensures consistent volumetric displacement, reducing measurement errors and improving repeatability. This is critical for industries like oil metering, fuel monitoring, and process automation where accuracy directly impacts efficiency and cost.
Operational Advantages
The HEG Oval Gear Flow Meter excels in handling high-viscosity fluids up to 1,000,000 cP, making it suitable for oils, fuels, syrups, and chemicals. Its durable construction supports extreme pressure and temperature conditions, ensuring long-term performance. With minimal maintenance requirements and high repeatability, it is an ideal solution for industries seeking reliable, accurate, and efficient liquid flow measurement.
