The JTR guided radar level transmitter is an advanced industrial level measurement solution engineered for reliable monitoring of liquids, solids, and complex process materials in demanding environments. Utilizing guided wave radar technology, the instrument transmits electromagnetic pulses through a probe cable or rod and measures the return signal to determine the level inside tanks or vessels.
This technology ensures accurate level detection even in challenging conditions such as foam, vapor, turbulence, and varying dielectric constants. As a result, it is widely adopted in industrial sectors including chemical processing, water treatment, power generation, cement manufacturing, and refining facilities.
Designed for durability and precision, the transmitter offers high measurement stability, simple installation, and minimal maintenance, making it an efficient solution for continuous level monitoring.
Key Features
The transmitter integrates advanced signal processing algorithms to ensure reliable measurements in complex process conditions.
Key capabilities include:
- High-precision radar level measurement technology
- Accurate detection for liquids, solids, and low dielectric materials
- Stable performance in foam, vapor, and agitation environments
- Digital display for simple configuration and monitoring
- Low-power 2-wire design for simplified wiring and installation
- Echo waveform diagnostics for noise filtering and signal verification
These features make the device suitable for continuous level monitoring in industrial tanks and storage vessels.
Design & Functionality
The radar level sensor operates by sending electromagnetic pulses along a probe rod or cable installed inside the tank. When the signal reaches the material surface, part of the wave is reflected back to the transmitter.
By calculating the time difference between transmitted and reflected signals, the system determines the exact level of the material inside the vessel. Advanced echo processing algorithms eliminate interference signals caused by internal tank structures or process noise.

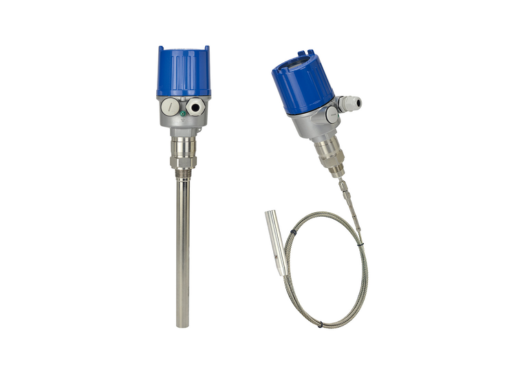

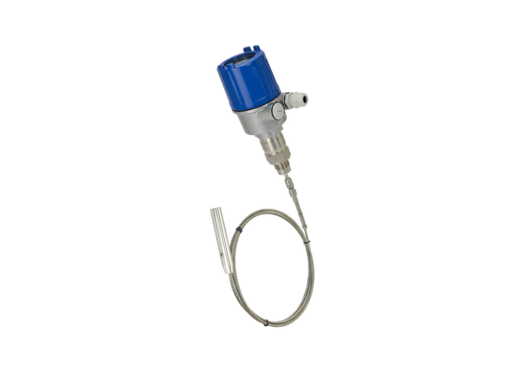

The transmitter supports multiple probe configurations including rod, coaxial, and cable versions, allowing flexible installation across various tank designs and measurement ranges.
Total Crossed Beams
The radar pulse travels along the guided probe and interacts directly with the material surface, ensuring precise level detection. This guided measurement principle minimizes signal dispersion and reduces measurement errors typically caused by tank geometry or environmental interference.
The controlled signal path improves measurement reliability in narrow vessels, deep tanks, and high-pressure process systems.
Beam Pitch Options
The transmitter is available with different probe configurations that allow adaptation to specific tank dimensions and process requirements.
Typical options include:
- Rod probes for short-range tank measurement
- Cable probes for deep tank applications
- Coaxial probes for stable signal transmission in demanding environments
These configurations enable accurate monitoring in storage tanks, silos, and process vessels across many industrial operations.
Intrinsic Synchronism
The integrated echo signal processing technology ensures stable synchronization between transmitted and reflected signals. This capability enables accurate level detection even when the process medium produces noise, vapor, or agitation.
With built-in waveform analysis, operators can visualize signal behavior inside the tank and optimize measurement settings for maximum accuracy.
Operational Advantages
Using guided radar technology offers several operational benefits for industrial facilities.
The transmitter provides:
- Continuous and reliable level measurement
- Minimal maintenance due to no moving parts
- Stable performance under high temperature and pressure
- Easy integration into plant monitoring systems
- Efficient process control and inventory monitoring
These advantages make the JTR guided radar transmitter an effective solution for modern industrial automation and process control systems.
