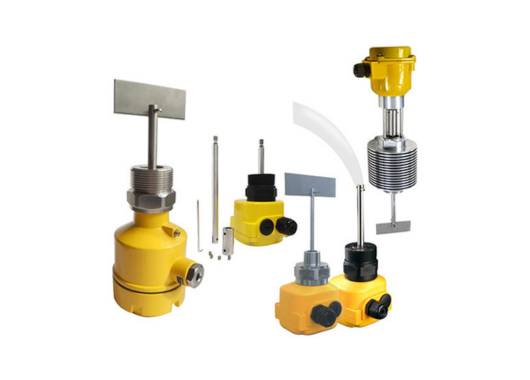

Modular rotating paddle level switches are reliable point-level detection devices designed for monitoring solid materials, powders, and bulk products inside silos, hoppers, and storage tanks. These switches use a mechanical rotating paddle driven by a synchronous motor to detect the presence or absence of material at a defined level. When the stored material blocks the paddle movement, the motor torque changes and activates an internal switching signal for process control or alarm systems.
This level detection technology is widely used across industrial manufacturing environments including cement production, grain storage, food processing plants, chemical manufacturing facilities, and environmental material handling systems. The modular construction of the rotating paddle level switch enables flexible installation, fast maintenance, and improved operational reliability.
Key Features
• Modular component design for flexible assembly
• Adjustable torque sensitivity for different bulk densities
• Durable stainless-steel mechanical components
• Reliable switching signal output for process control
• Dust-resistant sealing for powder environments
• Compact housing for easy mounting in containers
• Maintenance-friendly modular construction
• Suitable for light and heavy bulk solids
Design & Functionality
The rotating paddle level switch consists of five main modular components: the main drive unit, coupling system, extension shaft, process connection, and paddle blade. This modular design allows engineers to configure the switch according to container depth and application requirements.
A synchronous motor rotates the paddle continuously when no material is present. When bulk material reaches the paddle, the rotation is obstructed, causing the motor torque to activate a microswitch that sends an electrical signal to monitoring or control systems. This mechanism provides a simple yet highly reliable solution for point level detection.
Total Crossed Beams
The rotating paddle design enables precise detection of bulk materials without requiring complex electronics. The mechanical structure ensures stable operation even in dusty industrial environments. Because the paddle directly interacts with the stored material, the system can reliably detect powders, granules, and lightweight solids.
Beam Pitch Options
Different paddle designs and shaft extensions allow the switch to adapt to multiple installation positions such as top mounting, side mounting, or angled installations. Extension shafts can be selected based on tank depth, ensuring accurate level detection across various storage applications.
Intrinsic Synchronism
The internal synchronous motor ensures stable rotational speed and accurate triggering performance. The integrated torque control prevents damage to the motor while maintaining consistent detection sensitivity. This synchronization ensures reliable performance in continuous industrial operations.
Operational Advantages
Modular rotating paddle level switches provide several operational benefits for industrial automation systems. The modular structure allows easy replacement of individual parts rather than the entire device, significantly reducing maintenance costs. Installation is quick due to the compact design and flexible connection options such as threaded, flange, or fixture mounting.
Because the device operates using a simple mechanical principle, it is not affected by dust, humidity, or electrical interference. This makes it a dependable solution for harsh industrial environments where consistent level monitoring is required.
