PA5 differential pressure sensors are engineered for industrial environments where accurate pressure difference measurement is essential for system stability and operational safety. These sensors measure the pressure difference between two points within a pipeline or process system, allowing engineers to monitor fluid movement, detect blockages, and identify leaks before they impact production.
Designed for automation, water treatment, food processing, semiconductor manufacturing, and energy systems, PA5 sensors provide dependable differential pressure monitoring for both gases and liquids. Their compact design and stainless steel construction ensure durability in demanding industrial conditions while maintaining precise measurement performance.
Key Features
- Differential pressure measurement for liquids and air
- Dual output capability: analogue and switching signals
- Integrated digital display for real-time monitoring
- Compact sensor design for easy installation
- Stainless steel housing for corrosion resistance
- High reliability for industrial automation systems
- Suitable for conductive and non-conductive liquids
These features support process engineers in maintaining consistent system pressure levels across industrial equipment and pipelines.
Design & Functionality

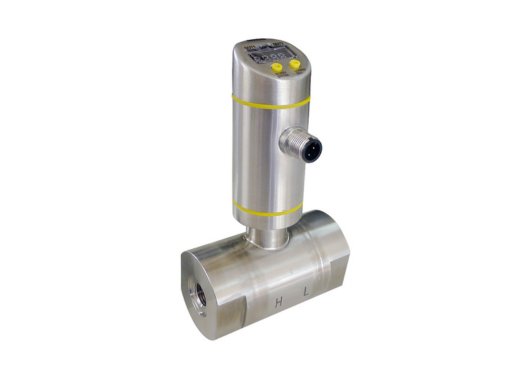

The PA5 sensor is designed with two pressure ports that connect directly to pipeline systems. One port measures high pressure while the other measures low pressure. By comparing these two values, the sensor determines the pressure difference between two points in a system.
This design enables operators to monitor pressure variations across valves, filters, and pipelines. When pressure differences increase unexpectedly, it can indicate clogging, partial valve closure, or leakage in the system. This early detection allows maintenance teams to resolve issues before they lead to system failure or downtime.
The sensor also includes a built-in LED display with a four-digit panel that provides real-time pressure readings for on-site monitoring. Engineers can easily configure settings through an intuitive interface.
Total Crossed Beams
The sensor architecture supports stable signal transmission and precise differential measurement by maintaining balanced sensing channels between the two pressure ports. This ensures reliable monitoring across varying operating conditions.
Beam Pitch Options
Multiple pressure ranges allow flexible configuration for different process requirements. Engineers can select suitable measurement ranges depending on the pressure level within their system.
Available pressure ranges include:
- 0.35 bar
- 1 bar
- 2 bar
- 5 bar
- 10 bar
This flexibility allows the sensor to operate effectively in both low-pressure and moderate-pressure industrial systems.
Intrinsic Synchronism
The sensor electronics provide synchronized measurement processing for both analogue and switching outputs. This ensures consistent signal transmission to PLC systems, industrial controllers, and monitoring platforms used in smart manufacturing environments.
Operational Advantages
PA5 differential pressure sensors provide several operational benefits for industrial facilities:
- Early detection of pipe blockages and filter clogging
- Monitoring of valve performance in pipelines
- Improved process safety and maintenance planning
- Reliable pressure measurement across harsh environments
- Compact design enabling flexible installation
These advantages make PA5 sensors suitable for industries such as water treatment, pharmaceuticals, metallurgy, food processing, semiconductor manufacturing, and renewable energy systems.
