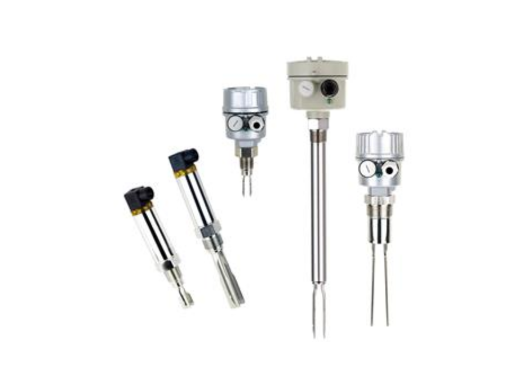

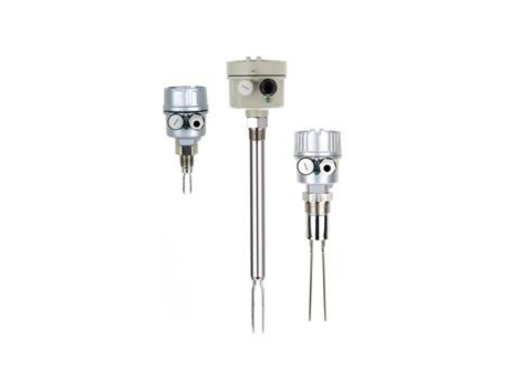

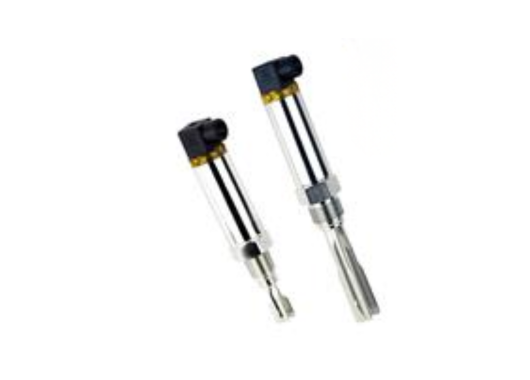

The SCX tuning fork level switch is an industrial point level detection device engineered to provide reliable monitoring of liquids, powders, and bulk solids in process vessels. Built with advanced vibrating fork technology and piezoelectric sensing elements, this level switch ensures stable detection even in challenging industrial environments. It is widely used in tanks, silos, bins, and pipelines where precise level control is essential for process efficiency and safety.
Industries such as cement manufacturing, food processing, pharmaceuticals, rubber production, steel plants, and chemical processing rely on tuning fork level switches to detect high and low material levels. The SCX model provides dependable switching signals for automated process control, preventing overfilling, dry running, and material overflow in industrial operations.
Key Features
- Reliable point level detection for solids, powders, and liquids
- Vibrating fork technology with piezoelectric sensing
- Wide voltage supply range for flexible installation
- Adjustable sensitivity for different material densities
- Durable industrial design with minimal maintenance
- Fail-safe high and low level switching modes
- Compatible with multiple industrial process environments
Design & Functionality
The SCX level switch operates using a vibrating tuning fork probe driven by piezoelectric crystals. The fork vibrates at a specific frequency when it is not in contact with the process material. When the material reaches the probe, the vibration is dampened, and the sensor electronics detect the frequency change. The device then sends a switching signal to indicate material presence.
Once the material level drops and the fork is free again, the vibration returns to its original frequency and the output switches back. This simple yet effective mechanism ensures highly reliable level detection without complex calibration or maintenance requirements.
Total Crossed Beams
The tuning fork probe structure creates a strong vibration signal that ensures stable detection even with fine powders or granular materials. The high vibration force minimizes material buildup and reduces false triggering caused by dust accumulation or adhesion.
Beam Pitch Options
Different probe lengths and process connection configurations allow the device to adapt to various tank sizes, silo geometries, and pipeline installations. This flexibility enables the switch to function effectively across diverse industrial level monitoring applications.
Intrinsic Synchronism
The built-in piezoelectric transmitter and receiver elements work in synchronized resonance. This intrinsic synchronization ensures stable vibration frequency and consistent detection performance, even under fluctuating environmental conditions such as temperature or humidity changes.
Operational Advantages
The SCX vibrating fork level switch offers multiple operational advantages for industrial automation. It provides high accuracy level detection without frequent calibration, making it suitable for continuous process operations. Its rugged construction allows it to withstand mechanical stress, temperature variations, and harsh industrial environments.
With the ability to detect liquids, powders, and bulk solids, this level switch serves as a versatile solution for storage tanks, silos, and material handling systems. Its dependable switching performance helps improve plant safety, process efficiency, and inventory control across a wide range of industrial applications.
