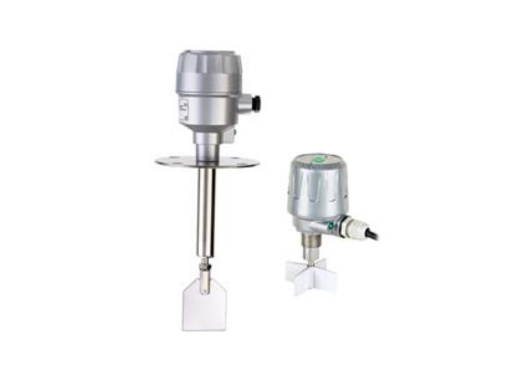

The SEX Rotary Paddle Level Switch is an industrial solution designed for accurate point-level detection of powders, pellets, and bulk solids stored in silos, bins, and storage tanks. Widely used across process industries, this mechanical level switch ensures reliable monitoring of material levels to support automated production and safe material handling.
Using a simple but highly effective operating principle, a synchronous motor rotates a paddle inside the container. When bulk material reaches the paddle, the rotation stops, triggering an internal micro-switch that signals a level alarm or control system. This dependable detection method makes the rotary paddle level switch a preferred choice for manufacturing plants, cement facilities, food processing units, and chemical storage operations.
Engineered for industrial reliability, the switch supports various mounting configurations and paddle designs to suit different bulk materials and tank geometries.
Key Features
- Durable dust-proof sealing to protect internal components
- Adjustable torque mechanism for different material densities
- Motor protection system for overload conditions
- Wide compatibility with powders, pellets, and granular materials
- Multiple paddle options for varied industrial applications
- Extended shaft and customized configurations available
- Compact housing designed for long-term industrial operation
Design & Functionality
The rotary paddle level switch operates with a low-speed synchronous motor that rotates a paddle at approximately 1 RPM. During normal operation, the paddle rotates freely inside the vessel. When bulk material surrounds the paddle, the motor stalls, activating a micro-switch that sends a control signal to monitoring systems.
This mechanism provides accurate level indication for high-level or low-level detection in bulk material handling systems.
Total Crossed Beams
The rotary paddle mechanism enables dependable detection by physically interacting with the material inside the container. This mechanical sensing principle eliminates signal interference issues often encountered in electronic sensors, making it ideal for dense powders, pellets, and irregular materials.
Beam Pitch Options
Different paddle shapes and shaft lengths allow the device to be configured for a wide range of tank sizes and material types. Standard, extended, and high-temperature shaft versions ensure optimal installation flexibility for industrial storage systems.
Intrinsic Synchronism
The synchronous motor ensures stable rotational speed and reliable switching performance. This intrinsic synchronism provides consistent detection accuracy and reduces maintenance requirements in demanding industrial environments.
Operational Advantages
Industrial facilities rely on rotary paddle switches for dependable material level monitoring. Key operational advantages include:
- Simple mechanical detection principle
- Minimal maintenance requirements
- Reliable operation in dusty environments
- Suitable for powders, granules, and pellets
- Long operational lifespan in continuous process systems
These advantages make the SEX Rotary Paddle Level Switch a trusted solution for bulk material management across industries including cement manufacturing, agriculture processing, chemical production, and food storage facilities.
