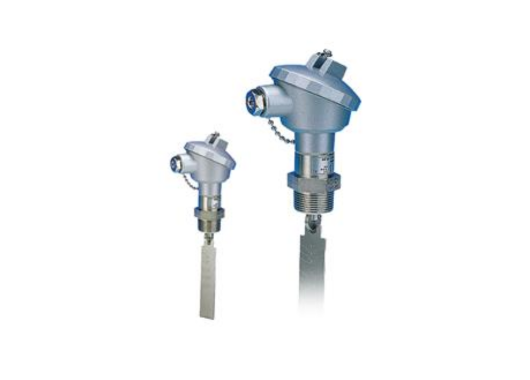

The SFX Paddle Type Level Switch is a dependable industrial flow monitoring solution designed to detect liquid movement in pipelines and process systems. This paddle-based flow switch uses the mechanical force of flowing liquid to trigger a magnetic reed switch, providing accurate indication of fluid flow conditions. Widely used across industrial manufacturing sectors, this switch helps maintain process reliability, protect critical equipment, and ensure stable operation in liquid transport systems.
Engineered for durability and operational stability, the paddle switch operates effectively even under demanding process conditions such as high temperature environments and pressurized pipelines. Its adjustable paddle design allows flexible installation across various pipe sizes and flow conditions.
Key Features
- Paddle-based flow detection for reliable liquid monitoring
- Adjustable paddle length for different pipe diameters
- SPDT output contact for flexible system integration
- High pressure tolerance up to 355 PSI
- Operating temperature up to 150°C
- Available in standard and explosion-proof configurations
- Durable industrial construction for long service life
Design & Functionality
The paddle flow switch works by utilizing the force generated by liquid flow inside a pipe. When fluid begins moving through the pipeline, the paddle inside the switch shifts upward due to the pressure of the flowing liquid. This motion compresses an internal spring mechanism and moves a magnetic element toward a reed switch.
When the paddle reaches a certain angle, the magnetic field activates the reed switch, sending a signal that confirms liquid flow within the system. If flow stops or drops below the detection level, the paddle returns to its default position, causing the switch to reset and indicate a no-flow condition.
This simple yet effective mechanism ensures reliable flow detection without complex electronics.
Total Crossed Beams
The internal sensing mechanism ensures accurate switching by converting paddle motion into a magnetic switching action. This design minimizes false signals and ensures dependable monitoring of fluid movement across industrial piping networks.
Beam Pitch Options
The adjustable paddle length allows the switch to adapt to different pipe diameters ranging from small process lines to larger industrial pipelines. This flexibility makes it suitable for various system configurations and flow rates.
Intrinsic Synchronism
The paddle movement, spring compression, and magnetic actuation work in synchronized motion to deliver precise switching performance. This mechanical coordination provides consistent detection even in fluctuating flow conditions.
Operational Advantages
Industrial facilities rely on continuous fluid circulation for cooling systems, processing equipment, and energy generation. The SFX paddle switch provides an effective safeguard by detecting insufficient or interrupted flow conditions.
By integrating this switch into process pipelines, operators can prevent pump damage, protect heat exchangers, and maintain stable process performance. Its rugged design and low maintenance requirements make it a preferred solution for industrial flow monitoring in HVAC systems, petrochemical plants, power generation facilities, and food processing operations.
