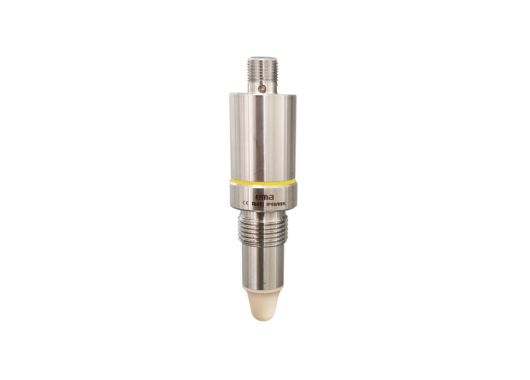

The Small High-Frequency Level Switch is designed for accurate point level detection in industrial processes where installation space is limited and reliable sensing is critical. This compact level sensor enables precise monitoring of liquids, viscous materials, powders, and granular media in storage tanks, pipelines, and processing equipment. Using advanced high-frequency sensing technology, the device ensures stable switching signals even in complex environments such as sticky liquids, foamy materials, or mixed media conditions.
The sensor supports intelligent auto-learning functionality, allowing the device to quickly adapt to different media types. This feature simplifies setup while improving reliability across diverse industrial applications including food production, chemical processing, pharmaceutical manufacturing, and wastewater treatment.
Key Features
• Compact sensor design for narrow installation spaces
• Intelligent one-touch learning configuration
• Suitable for liquids, paste, powder, and bulk materials
• Reliable detection for sticky or viscous media
• Hygienic probe material suitable for sanitary industries
• High protection rating for harsh industrial environments
• Flexible installation for tanks and pipelines
Design & Functionality
The sensor is built with a robust stainless-steel housing that provides excellent corrosion resistance and durability in demanding process environments. Its compact probe structure allows installation in confined spaces such as small tanks or narrow pipelines where conventional level switches cannot fit.
The probe is manufactured from hygienic PEEK material, which offers strong resistance to chemical corrosion, aging, and solubility. This makes the device suitable for sanitary applications where contamination control and durability are essential.
Total Crossed Beams
The high-frequency sensing system continuously analyzes the electrical characteristics of the surrounding media. By scanning the medium environment, the switch accurately detects material presence and level position without being affected by foam, suspended particles, or medium separation.
Beam Pitch Options
Different probe lengths can be configured to suit specific tank depths and installation requirements. This flexibility allows the sensor to be optimized for both small containers and larger industrial vessels while maintaining stable detection performance.
Intrinsic Synchronism
The integrated intelligent learning system allows the device to automatically calibrate to the surrounding medium. With a simple touch-based configuration process, the sensor learns the material properties and optimizes detection parameters without complex programming or external software.
Operational Advantages
Industrial facilities benefit from improved process control, reduced equipment downtime, and enhanced operational safety. The sensor prevents common issues such as pump dry running, tank overflow, or empty pipeline alarms. Its compact design, reliable detection capability, and hygienic material construction make it an ideal solution for modern automated level monitoring systems across multiple industries.
