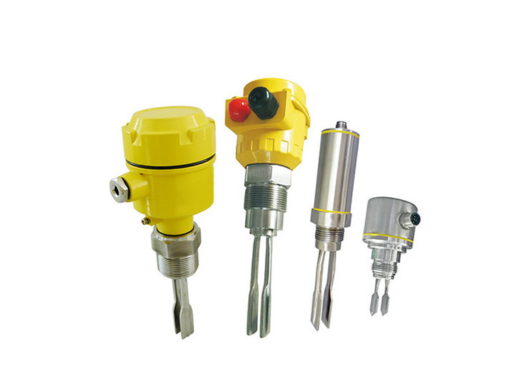

Smart vibrating fork level switches are advanced point-level detection devices designed for reliable monitoring of liquids, powders, and bulk solids in industrial process tanks. Using intelligent sensing technology and automatic learning functionality, these switches detect media presence without requiring complex calibration. Their robust design ensures dependable operation in demanding industrial environments such as manufacturing plants, chemical processing facilities, pharmaceutical production, and automated material handling systems.
Unlike conventional level switches, smart vibrating fork technology enables a single device to detect multiple media types. The system automatically learns the density of the monitored material through a simple button-based configuration, reducing setup time and improving operational efficiency.
Key Features
- Smart auto-learning function for detecting different media densities
- Suitable for liquids, powders, pellets, and granular materials
- Stainless steel 316L probe construction for corrosion resistance
- Strong vibration amplitude to prevent material buildup
- Enhanced anti-interference electronics for stable operation
- Compact design for installation in narrow tanks or vessels
- Reliable switching output for industrial automation systems
- Durable metal housing designed for harsh industrial environments
Design & Functionality
The vibrating fork level switch operates using a piezoelectric drive system that causes the fork to vibrate at its natural frequency. When the fork contacts a medium such as liquid, powder, or solid material, the vibration frequency changes due to damping. The internal electronics instantly detect this change and trigger a switching output to indicate the level condition.
The integrated smart learning function allows the sensor to automatically adapt to various media densities. With simple learn/set buttons, the device calibrates itself to the target material without manual adjustments, making installation faster and reducing engineering complexity.
Total Crossed Beams
The sensing structure is engineered with high-precision fork geometry that ensures consistent vibration behavior. This design allows the switch to maintain stable sensing performance even in challenging process conditions such as turbulence, material buildup, or vibration absorption on tank walls.
Beam Pitch Options
Different fork sizes and probe lengths allow flexible installation in tanks, silos, pipelines, and containers. Compact fork designs are available for confined spaces, while extended probes support deeper vessel installations.
Intrinsic Synchronism
Advanced electronics provide synchronized vibration control and accurate signal detection. Improved circuit design increases electromagnetic compatibility (EMC) and resistance to electrical noise, ensuring consistent operation within automated industrial systems.
Operational Advantages
Smart vibrating fork level switches deliver significant operational benefits for process automation. Their ability to detect both liquid and solid materials with one device simplifies inventory management and reduces equipment costs. The stainless steel sensing element ensures long service life, while the maintenance-free design eliminates moving parts and calibration requirements.
These switches are widely used in industries including feed processing, coal handling, chemical manufacturing, pharmaceutical production, food processing, and automated material handling systems where precise level detection is essential.
