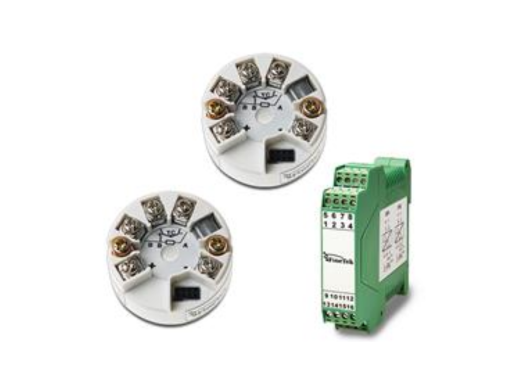

The TRX Temperature Transmitter is engineered to deliver accurate and stable temperature signal conversion for industrial automation systems. In modern process environments, temperature monitoring is critical for maintaining operational safety, process efficiency, and equipment protection. The TRX transmitter converts multiple temperature sensor signals into standardized analog output signals that can be easily integrated into PLC, SCADA, and distributed control systems.
Designed for industrial environments, this transmitter supports thermocouple, RTD, voltage, and current inputs. With universal signal compatibility and high-precision conversion technology, the TRX temperature transmitter ensures consistent measurement performance across a wide range of industrial applications including chemical processing, boiler systems, manufacturing plants, HVAC systems, and water treatment facilities.
Key Features
The TRX temperature transmitter provides multiple advantages for industrial monitoring systems.
Universal multi-signal input capability allows connection with thermocouples, RTD sensors, voltage signals, and current signals. This flexibility enables easy integration into different industrial process environments.
The transmitter produces a stable 4–20mA analog output signal, which is widely used in industrial control systems due to its resistance to electrical noise and ability to transmit data over long distances.
With galvanic isolation protection, the device ensures safe signal transmission and protects sensitive control systems from electrical interference and voltage fluctuations.
The integrated LCD display and simple button configuration allow convenient setup, configuration, and monitoring during installation and operation.
Design & Functionality
The TRX transmitter is designed using advanced signal conditioning technology that converts raw sensor signals into precise and stable current outputs. Internal amplification circuits and impedance conversion components stabilize the incoming signals before they are processed by a microprocessor.
The internal microprocessor performs linearization calculations and signal corrections to ensure high measurement accuracy. An isolated digital-to-analog conversion circuit then produces the final analog output used by automation systems.
This architecture provides excellent signal stability even in electrically noisy industrial environments.
Total Crossed Beams
The transmitter supports multiple sensor types and measurement ranges, enabling precise temperature monitoring in diverse industrial equipment such as heaters, reactors, boilers, pipelines, and manufacturing machinery.
This flexibility ensures the device can be used in many temperature monitoring architectures without requiring additional signal converters.
Beam Pitch Options
The TRX transmitter accepts multiple input signal ranges including millivolt, voltage, and current signals. It also supports common thermocouple types such as K, J, T, E, R, S, B, and N, along with RTD sensors including PT100.
These input options allow the transmitter to adapt to different sensor configurations commonly used in industrial measurement systems.
Intrinsic Synchronism
The transmitter maintains high measurement accuracy through precise signal isolation and compensation functions. Galvanic isolation improves signal stability and prevents interference from electrical noise generated by nearby industrial equipment.
This ensures consistent and reliable data transmission in automated process control environments.
Operational Advantages
The TRX temperature transmitter offers several operational benefits for industrial automation systems.
It improves signal reliability for long-distance transmission between sensors and control systems. The universal input design reduces the need for multiple transmitter models, simplifying installation and maintenance.
Its durable design ensures dependable performance in demanding industrial environments, making it suitable for manufacturing plants, chemical facilities, power generation systems, and industrial process monitoring applications.
