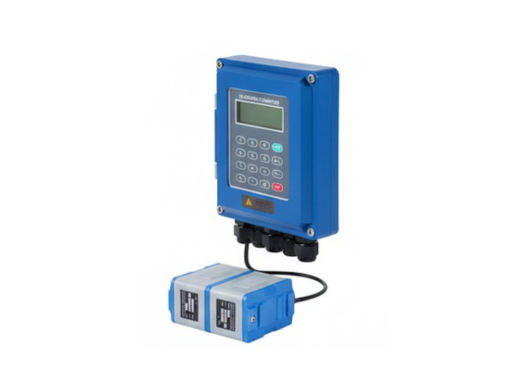

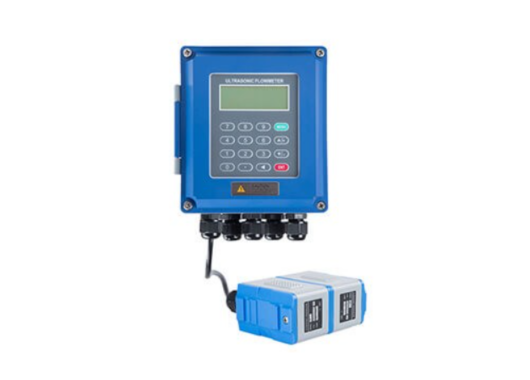

The UF2000B Economic Type Clamp-on Ultrasonic Water Flowmeter is engineered for accurate, non-invasive liquid flow measurement across diverse industrial environments. Designed for external mounting, it eliminates the need for pipe cutting or system shutdown, making it an efficient solution for industries such as oil and gas, wastewater treatment, HVAC systems, chemical processing, food production, marine operations, and vehicle fluid systems. This advanced ultrasonic flow device ensures precise monitoring while maintaining operational continuity.
Key Features
- Non-invasive clamp-on design for quick installation
- Wide pipe compatibility from 32 mm to 6000 mm
- High accuracy with ±1% precision and excellent repeatability
- Multi-output signals including MODBUS, HART, pulse, and analog
- Long-term data logging up to 5 years for performance tracking
- Suitable for extreme temperature environments
Design & Functionality
The UF2000B utilizes ultrasonic transit-time technology to measure fluid velocity without direct contact with the liquid. Sensors are mounted externally on the pipe surface, transmitting signals through the pipe wall to calculate flow rate. This design ensures zero pressure loss, no contamination risk, and minimal maintenance requirements, making it ideal for clean and corrosive liquids alike.
Total Crossed Beams
The system supports multi-path measurement configurations, enhancing accuracy in complex flow conditions. By using crossed ultrasonic beams, it minimizes errors caused by turbulence, ensuring stable readings across large industrial pipelines.
Beam Pitch Options
Flexible beam pitch configurations allow the device to adapt to varying pipe diameters and materials. This ensures optimal signal strength and measurement precision across applications ranging from small process lines to large-scale water distribution systems.
Intrinsic Synchronism
The UF2000B integrates synchronized signal processing technology, ensuring real-time data consistency and improved measurement reliability. This feature is critical for process control environments where precision and timing are essential.
Operational Advantages
This ultrasonic flowmeter significantly reduces installation costs and downtime, making it ideal for retrofit applications. Its ability to operate across industries such as HVAC, marine, food processing, and chemical systems makes it a versatile tool for industrial flow monitoring. With robust data recording and multiple communication outputs, it supports modern automation and smart industrial systems, improving efficiency and decision-making.
