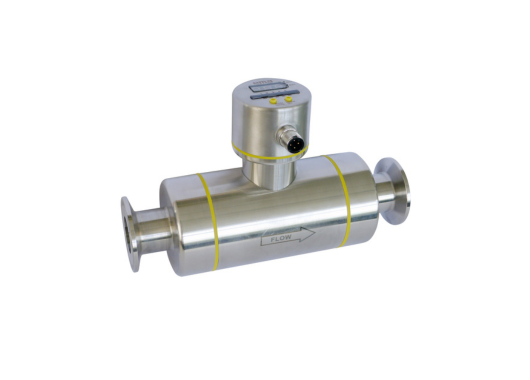

Ultrasonic flow meters are widely used in modern industrial process monitoring to measure liquid flow with high precision and reliability. Designed for industrial automation, this compact ultrasonic flow meter provides accurate measurement of conductive and non-conductive liquids including water, oil, chemicals, and industrial fluids. By using advanced ultrasonic measurement principles, the sensor detects flow rate without mechanical moving parts, eliminating pressure loss and reducing maintenance requirements.
This flow monitoring solution is ideal for process industries requiring stable, repeatable measurements in compact installations. Its stainless-steel construction and IP68/IP69K protection rating allow reliable operation in demanding industrial environments such as water treatment plants, food processing facilities, semiconductor manufacturing, pharmaceutical production, and environmental monitoring systems.
Key Features
- Ultrasonic technology for precise liquid flow measurement
- Suitable for conductive and non-conductive liquids
- Integrated temperature monitoring capability
- Dual output signals for industrial control systems
- Compact stainless-steel housing for durability
- Digital display for real-time process monitoring
- No moving parts for maintenance-free operation
- Flexible installation options including clamp, thread, and flange
Design & Functionality
The ultrasonic flow meter combines a flow sensor and flow meter into a compact industrial device. Using ultrasonic transmission through the fluid medium, it calculates flow velocity and provides accurate flow rate readings without requiring internal mechanical components.
Unlike traditional turbine or electromagnetic flow meters, the smooth internal tube design prevents blockage and eliminates pressure loss in the pipeline. This design significantly improves system reliability and reduces maintenance costs in continuous industrial operations.
The integrated digital display allows operators to monitor flow rate or temperature directly on the device. Simple button controls make configuration easy, enabling quick adjustment of system parameters for different applications.
Total Crossed Beams
The ultrasonic measurement principle utilizes acoustic signal transmission across the fluid path to determine flow velocity. The crossed-beam structure ensures consistent signal detection and accurate measurement even when fluid properties change.
Beam Pitch Options
Optimized beam pitch configuration enhances measurement stability across a wide flow range. This allows the device to maintain high measurement precision for both low-flow and high-flow industrial applications.
Intrinsic Synchronism
Intrinsic synchronization of ultrasonic signals ensures reliable data processing within the sensor. This internal synchronization reduces noise interference and improves measurement stability in industrial environments where vibration or electrical interference may occur.
Operational Advantages
The ultrasonic flow meter offers several advantages over conventional mechanical flow meters:
- No pressure drop within pipelines
- Minimal maintenance due to non-mechanical design
- Reliable measurement unaffected by viscosity or density changes
- Compact installation in limited spaces
- High reliability for continuous industrial operation
These benefits make ultrasonic flow meters a preferred solution for modern industrial automation systems that require efficient, accurate, and low-maintenance fluid monitoring.
